A repair shop choosing between a post-applied aluminium label and graphics integrated into a moulded plastic part is choosing between two different production stages, not two versions of the same product. By the end, you will be able to match the method to the part, exposure, quantity, repair schedule, and identification purpose, then prepare a practical specification for production in Goa.
Key takeaways
- Use aluminium when the part is made before the label is applied.
- Use IMD/IML when decoration must be moulded into a new component.
- Specify substrate, adhesive, artwork, exposure, and repair-cycle requirements.
- Compare quotations by lead time, quantity, installation effort, and rework risk.
Choose the process by asking when the part is made
Choose by asking when the part is made: aluminium nameplates are manufactured separately and applied after painting, powder coating, replacement-part installation, or equipment servicing; IMD/IML is built into the component during injection moulding.
In-mold decoration places printed polyester or polypropylene film inside an injection mould. Heat, pressure, resin, and the moulding cycle bond the graphic into the finished thermoplastic part. That makes in mold decoration automotive parts a planned production process, not an adhesive label applied to an existing bumper or trim panel.
| Option | Best lifecycle point | Practical vehicle uses |
|---|---|---|
| Aluminium nameplate | After the part already exists | Replacement-part identification, fleet and workshop asset tags, permitted compliance-related identification, battery and electrical warnings, equipment labels |
| IMD/IML | During repeated plastic-component moulding | Dashboards, switch panels, bezels, trim pieces, consoles, fascia panels, and other moulded plastic components |
For a one-off or small-batch repair, choose the replacement aluminium label. IMD normally requires artwork preparation, film validation, tooling access, mould changes or a dedicated insert, process trials, and higher production volumes; an aluminium label can be produced without remoulding the part.
For aluminium nameplates or in mold decoration for vehicle repairs in Goa, remember the legal boundary: a custom label does not replace a prescribed vehicle registration plate under Rule 50 of the Central Motor Vehicles Rules. Use the compliant registration plate separately.
Match the label to the part, exposure, and repair cycle
Choose in-mold decoration only when the plastic component will be remoulded at production volume. For vehicle repair labels in goa, a post-applied plate usually survives the actual repair cycle better because it needs no mould change.
| Option | Best fit | Reject it when |
|---|---|---|
| IMD/IML | High-volume dashboards, bezels, switch panels, consoles, and moulded trim; integrated graphics resist sunlight, rain, detergents, and moderate abrasion | The existing part cannot be remoulded, only one replacement is needed, the serial number must change, or the surface faces severe impact and abrasion |
| Anodised aluminium or Metalphoto | Durable identification on rigid, flat vehicle equipment exposed to sun, oils, fuels, heat, and pressure washing | The part flexes, has a textured moulded surface, or the plate could snag |
| Stainless steel | Severe corrosion, salt exposure, or galvanic-risk locations | Weight, cost, or tight forming makes it impractical |
| Vinyl | Flexible, short-to-medium-term markings | You need permanent identity or heavy abrasion resistance |
| Polycarbonate | Formed overlays and interface graphics | The surface receives hard impacts without protection |
| Moulded graphics | High-volume integrated plastic components | You need a one-off replacement label |
A flat plate needs a flat bonding zone. Measure the available length and width, curvature, edge radius, mounting holes, recess depth, adhesive clearance, and viewing distance before selecting aluminium nameplates vehicle equipment.
Isolate aluminium from steel, copper, or carbon-fibre parts with a coating, adhesive layer, plastic spacer, compatible fasteners, sealed holes, and drainage paths. Trapped Goa moisture turns dissimilar-metal contact into corrosion. A raised plate is the wrong choice where fingers, tools, or cargo repeatedly strike the surface.
Specify the construction and artwork before production
A production-ready specification names construction, artwork, mating surface, and acceptance checks before any label is made.
1. Record the alloy or finish, thickness, rounded corners, drilled holes, adhesive type, primer requirement, overlaminate, UV resistance, chemical resistance, and marking method: screen printing, digital printing, laser marking, or chemically protected graphics. Match the adhesive to painted steel, bare aluminium, powder coat, ABS, polypropylene, EPDM, or textured plastic.
Polypropylene and polyethylene need a specialist adhesive system or primer.
2. Define minimum character height for the viewing distance, pictograms, colour contrast, serial and batch fields, QR-code size and quiet zone, replacement-part reference, and inspection mark. Separate permanent identity information from replaceable service information; automotive identification labels in Goa must not substitute for prescribed registration or vehicle-identification marks.
3. Write the validation plan for sun, salt, detergent, oil, fuel, abrasion, water immersion, and pressure washing. Use ASTM D1000 for tape properties, ASTM D3330 for peel, ASTM D3654 for holding power, ASTM D3359 for coating adhesion, and ISO 9227 or ASTM B117 for comparative salt-spray testing.
These methods are not universal pass criteria, and salt-spray hours do not predict field life alone.
Put QR readability, edge-lift limits, and label-batch traceability in the acceptance record. Specify the actual substrate and pass criteria; a generic “automotive grade” claim leaves the repair shop unable to reject a failed label.
Install a repair label so the specification can work
A post-repair aluminium label fails at the bond line when preparation is rushed, not because aluminium is inherently unsuitable. Use this sequence for vehicle repair labels in Goa:
1. Inspect the finished panel. Remove wax and silicone, then clean with a degreaser compatible with the paint, powder coat, or substrate. Let the surface dry completely and confirm that paint or powder coat has cured.
2. Check the adhesive supplier’s application-temperature range. Do not apply the plate to a cold, wet, overheated, or freshly painted panel.
3. Dry-fit the plate and confirm hole, edge, curvature, and clearance dimensions. Peel the liner without touching the adhesive.
4. Apply the plate from one edge to the other, pushing out air as you go. Use firm, uniform pressure across the entire face and perimeter.
5. Protect the label from washing, rain, dust, and movement during the specified cure or dwell period. Pressure-sensitive adhesive gains bond strength over time. Add edge sealing where exposure and construction require it, especially around drilled holes and cut edges.
6. Record position, legibility, bubbles, wrinkles, edge lift, adhesion, serial number, QR scan, photographs, and batch reference.
This post-manufacture process differs from IMD, which controls film registration, resin compatibility, mould temperature, venting, injection conditions, shrinkage, ink migration, wrinkling, trapped air, and read-through during moulding.
Request a Goa quotation that compares time, quantity, and rework risk
A realistic Goa quotation must compare a finished label with a tooled IMD project on the same quantity, timing, and rework basis. For aluminium nameplates or in mold decoration for vehicle repairs in Goa, send:
- Part drawing and clear photographs; measured flat and curved areas; mounting-hole positions; edge radii; substrate, coating, and adhesive clearance; viewing distance.
- Quantity required now, forecast quantity, replacement frequency, and exposure to sun, rain, salt air, oils, cleaners, heat, abrasion, and pressure washing.
| Option | Best comparison |
|---|---|
| Anodised aluminium or Metalphoto | Durable identification on a finished part |
| Stainless steel | Severe corrosion or galvanic-risk locations |
| Vinyl, polycarbonate, or moulded graphics | Flexible markings, formed overlays, or repeated high-volume moulding |
Ask for separate prices for each relevant option, including automotive identification labels in Goa and aluminium nameplates vehicle equipment. Require artwork and tooling charges, mould or insert changes, minimum quantity, proof or first-article timing, production lead time, replacement-part rework, packaging, installation instructions, test evidence, and the process for changing serial or batch fields.
Shreeniwas Signs Pvt Ltd can help assess a small-batch label against the actual substrate and Goa service conditions, but no responsible price or lead time exists without a specification and quantity estimate.
Choose IMD when the component will be remoulded repeatedly at production volume; choose a specified, tested post-applied label when the vehicle or replacement part already exists.
Related products

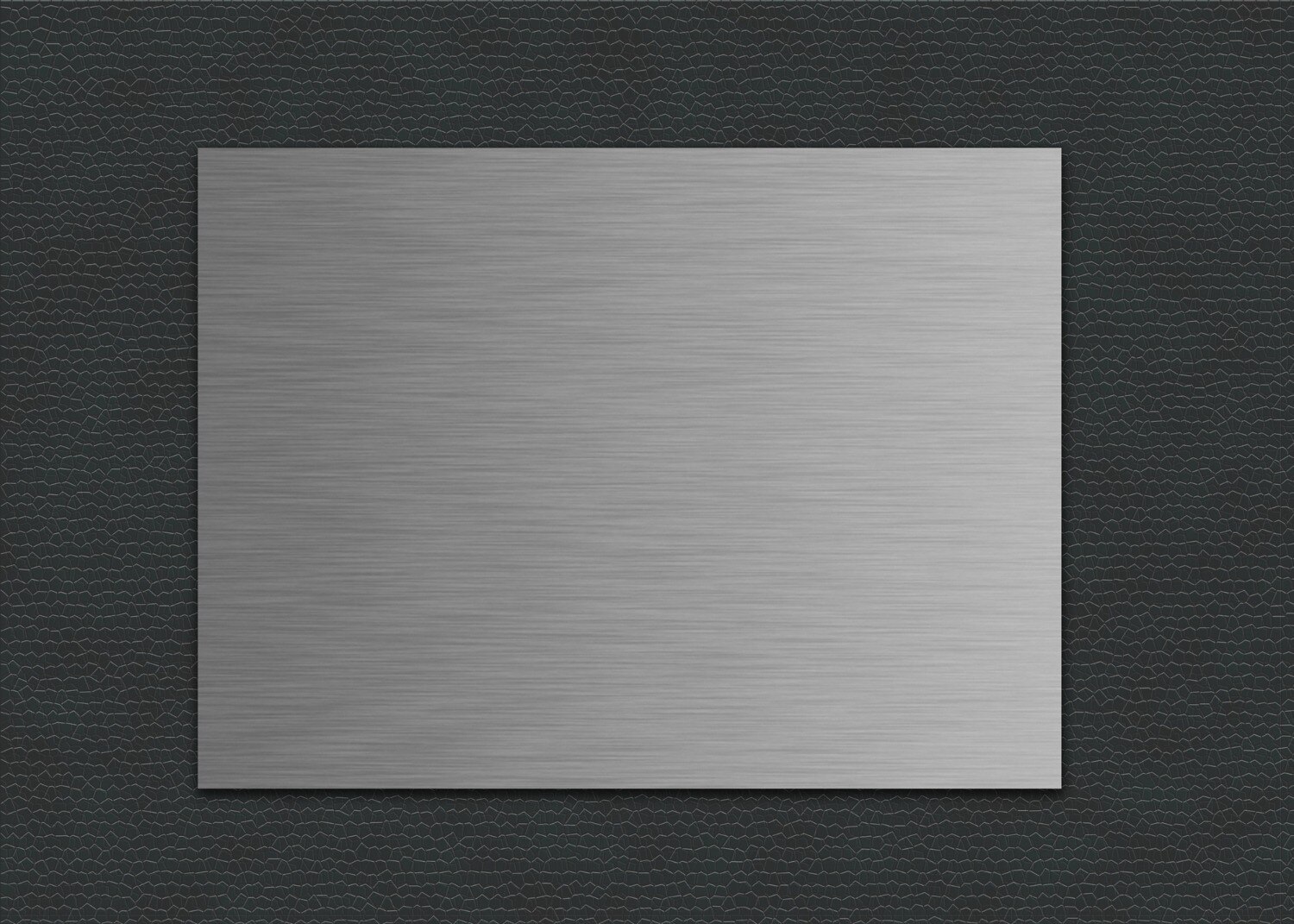

 | Metal Labels Aluminum Nameplates are popularly known for their light weight and capacity to oppose corrosion.Its recognizable gleaming white shine offers... View product → |
 | Metal Labels In the most testing conditions, particularly overwhelming modern situations, where heat, moisture and erosion are available, Stainless Steel... View product → |
Frequently asked questions
When should you choose aluminium nameplates for vehicle repairs?
Choose aluminium nameplates when the part already exists and will be painted, powder coated, replaced, or serviced before the label is applied.
When is in-mold decoration suitable for automotive parts?
Choose IMD/IML when the label or graphic must be built into an injection-moulded component during manufacturing.
What should a vehicle repair label specification include?
Specify the aluminium grade or label construction, adhesive, dimensions, artwork, surface finish, operating exposure, and repair-cycle requirements before production.
What should a Goa quotation compare?
Ask suppliers to compare quantity, production and installation time, tooling or artwork requirements, and the rework risk for each process.
